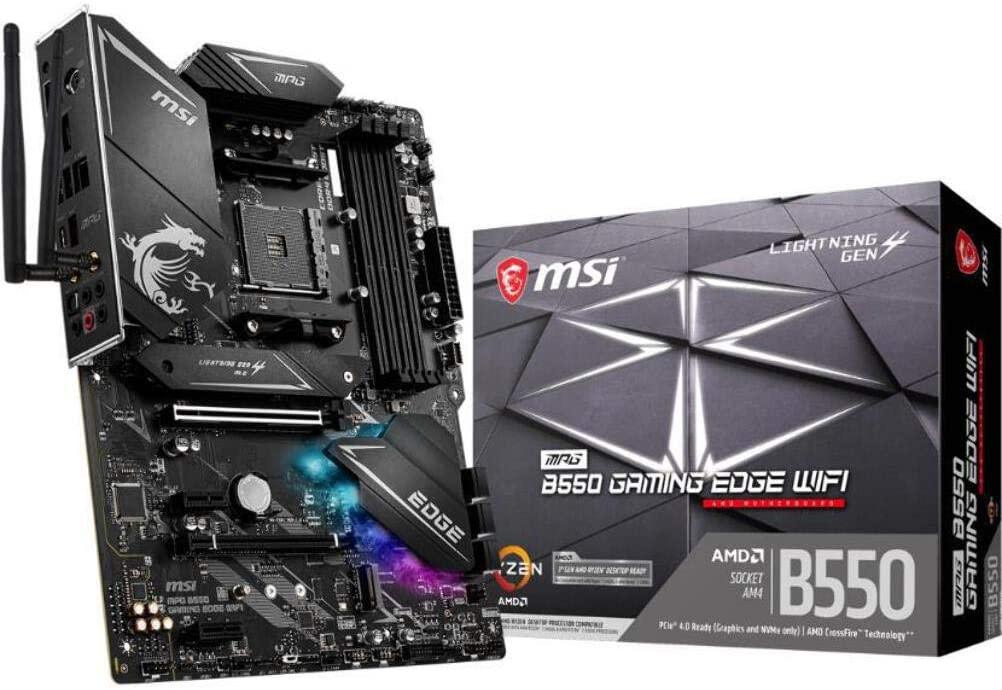

MSI MPG B550 GAMING EDGE WIFI Gaming Motherboard (AMD AM4, DDR4, PCIe 4.0, SATA 6Gb/s, M.2, USB 3.2 Gen 2, AX Wi-Fi 6, HDMI/DP, ATX, AMD Ryzen 5000 Series processors)
Powered by AMD Ryzen AM4 processors, the MSI MPG B550 GAMING EDGE WIFI (ATX) has been forged to bring balance to any gaming-focused system. Meet enemies in combat with Wi-Fi, Extended Heatsink Design, Core boost, Pre-installed I/O Shielding and Mystic Light. Equipped with a PCIe 4.0 slot and Lightning M.2 with M.2 Shield Frozr for the latest in connectivity.
- Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
- Supports dual channel DDR4 memory up to 128 GB (4866 MHz)
- 2.5G LAN with LAN Manager and Wi-Fi 6 AX Solution
- MYSTIC LIGHT: RGB LED lighting and extendable pin headers – 16.8 million colors / 29 effects
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- AUDIO BOOST rewards your ears with studio grade sound quality for immersive gaming experiences
- Premium Thermal Solution: Extended heatsink with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper
Specifications
| CPU |
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
|
| Chipset |
AMD B550 Chipset |
| Memory |
- 4x DDR4 memory slots, support up to 128GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 5100 MHZ
- 1DPC 2R max speed 3866 MHZ
- 2DPC 1R max speed 4000 MHZ
- 2DPC 2R max speed 3600 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
|
| Expansion Slots |
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
- 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
- When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
|
| Onboard Graphics |
- x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
- Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
|
| Multi-GPU |
Supports 2-Way AMD CrossFire™ Technology |
| Storage |
AMD B550 Chipset
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
- The supported specification depends on installed processor.
|
| RAID |
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
|
| USB |
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
| Audio |
Realtek® ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® |
Intel® Wi-Fi 6 AX200
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.1
|
| Internal connectors |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 1x TPM module connector
- 1x Clear CMOS jumper
|
| Back panel ports |
- PS/2 Combo Port
- DisplayPort
- 2.5G LAN
- USB 3.2 Gen 2 10Gbps (Type-A)
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- Wi-Fi / Bluetooth
- Optical S/PDIF OUT
|
| LED Features |
- 1x EZ LED Control switch
- 4x EZ Debug LED
|
| I/O Controller |
NUVOTON NCT6687-R Controller Chip |
| Hardware Monitor |
- CPU/ System/ Chipset temperature detection
- CPU/ System/ Pump fan speed detection
- CPU/ System/ Pump fan speed control
|
| Form Factor |
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
|
| Warranty |
3 Years |
