Name: MSI MPG B460I Gaming Edge WiFi Gaming Motherboard
Brand: MSI
SKU: MSIMPG_B460I Gaming Edge WiFi
Price: 14750.0 INR
Availability: OutOfStock

MSI MPG B460I Gaming Edge WiFi Gaming Motherboard-Motherboard-dealsplant

Roll over image to zoom in Click on image to zoom

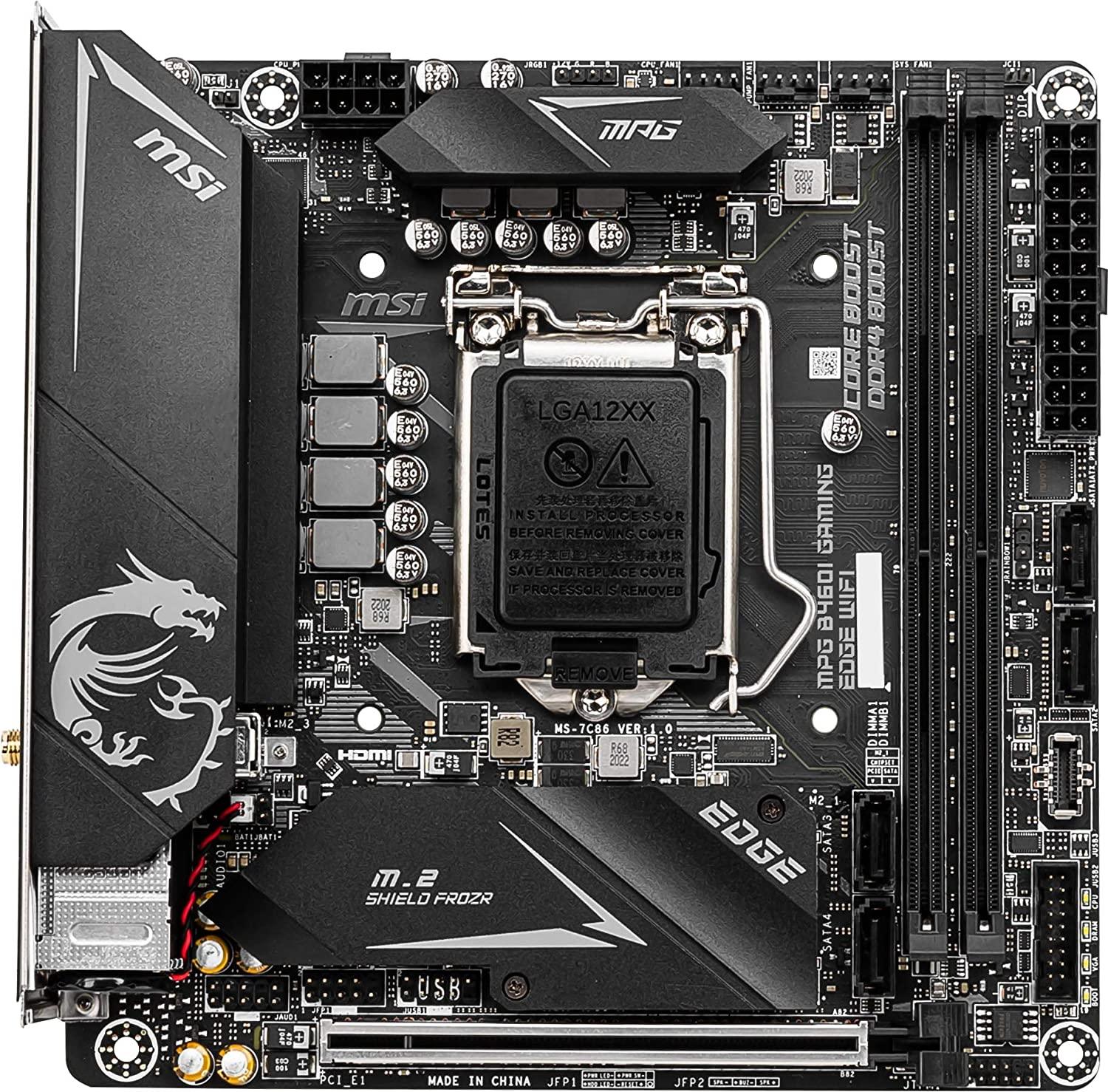

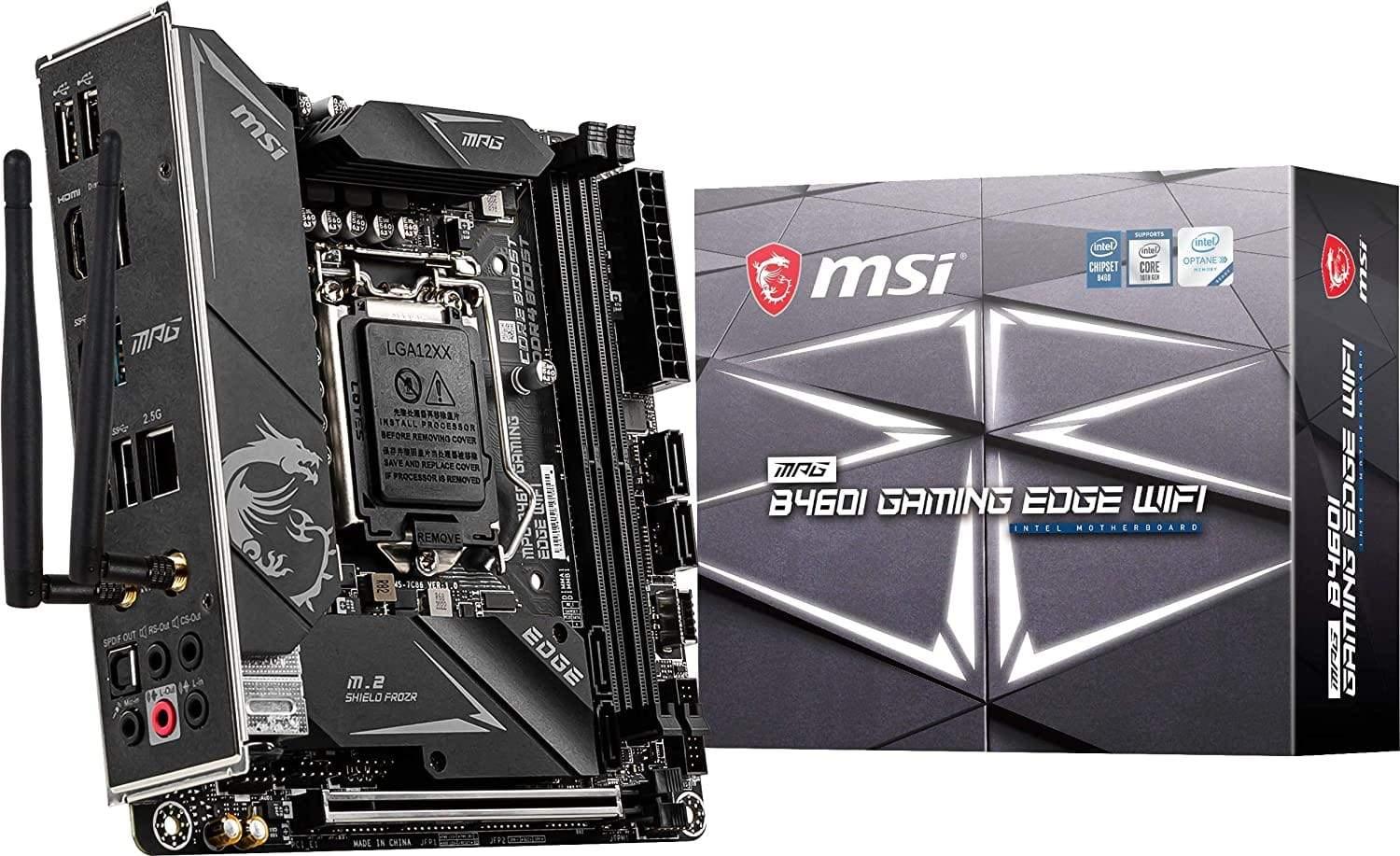

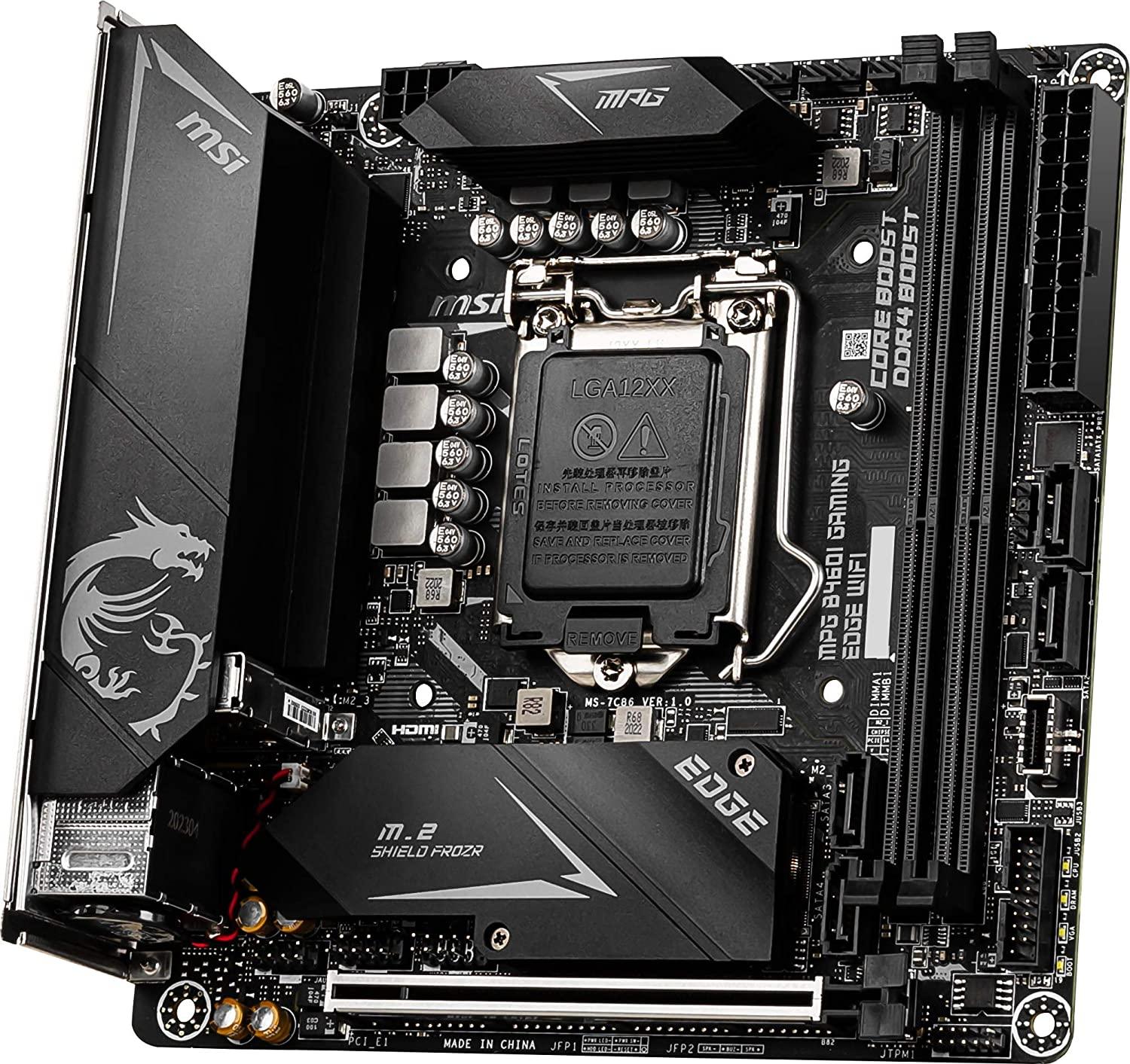

MSI MPG B460I Gaming Edge WiFi Gaming Motherboard (Mini-ITX, 10th Gen Intel Core, LGA 1200 Socket, DDR4, Dual M.2 Slots, USB 3.0, 2.5G LAN, WiFi 6, DP/HDMI)

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

This fits your .

Make sure this fits by entering your model number.

Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933 MHz (Max)

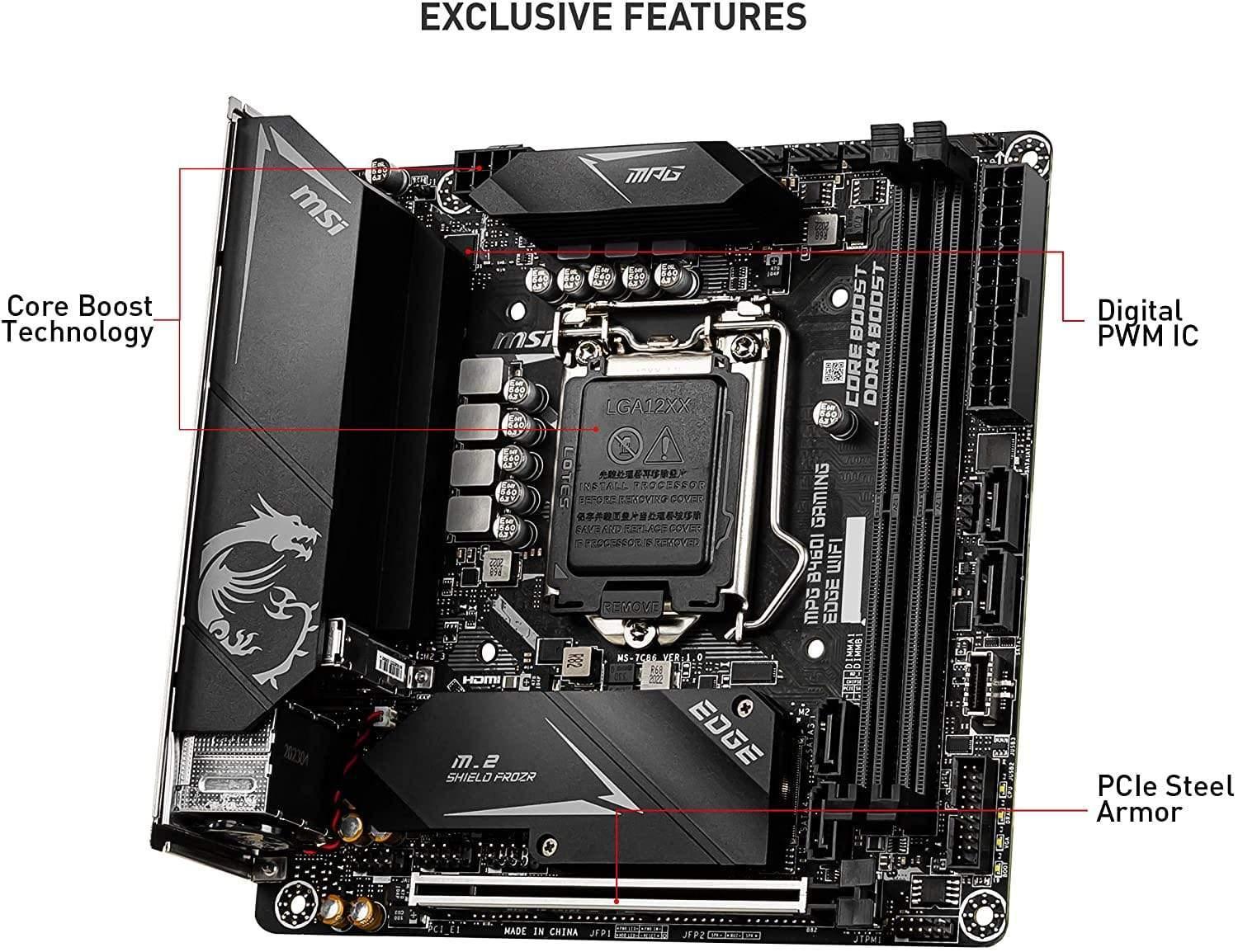

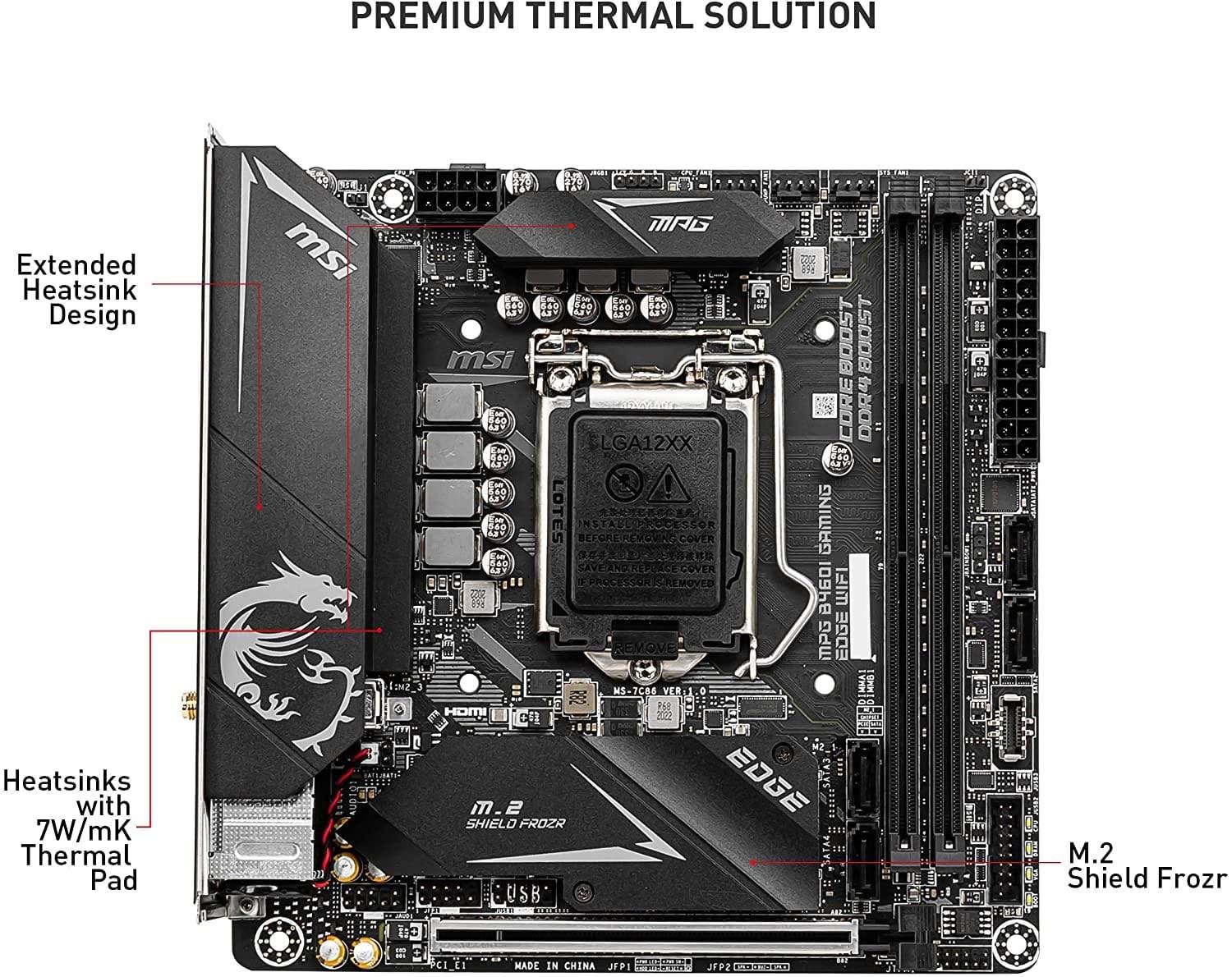

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Enhanced Power Design: 6+1+1 Digital Power Design, Core Boost, DDR4 Boost

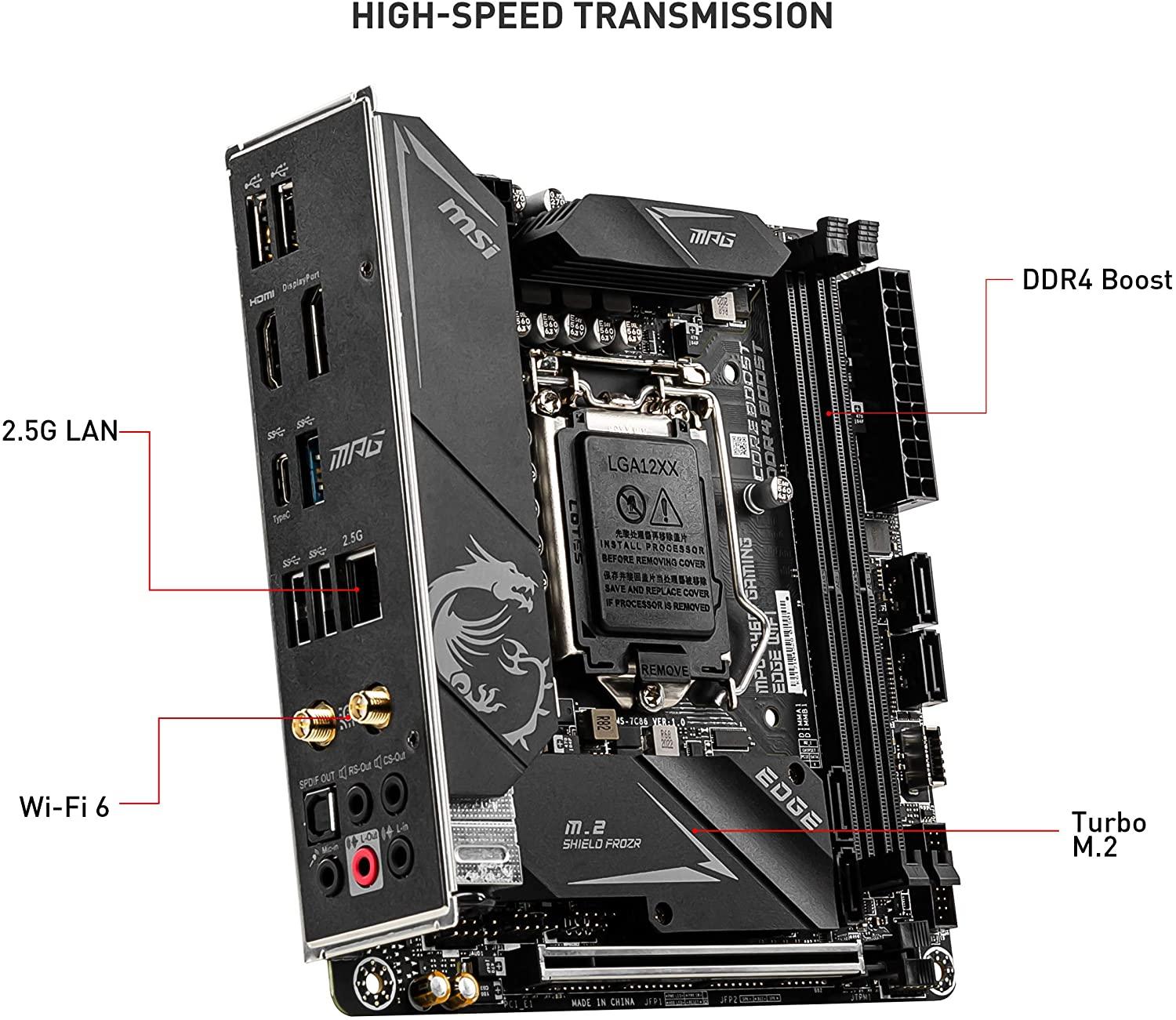

2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Specifications

CPU	Supports Intel^® 10^th Gen processors for LGA 1200 socket
Chipset	Intel^® B460 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Intel^® Core^™ i7 / i9 Supports up to DDR4 2933 MHz Intel^® Core^™ i5 and below Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 3.0 x16 slot (From CPU)
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Storage	Intel^® B460 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices M2_2 supports up to PCIe 3.0 x4, 2280 storage devices Intel^® 0ptane^™ Memory Ready for M2_2 slot.
RAID	Intel^® B460 Chipset Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	Intel^® B460 Chipset 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector) 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector
Audio	Realtek^® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek^® RTL8125B 2.5Gbps LAN controller
Wireless LAN & 8luetooth	Intel^® AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot Only support windows 10 64-bit
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 1x System panel connector 1x 4-pin RGB LED connector 1x 3-pin RAINB0W LED connector 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CM0S jumper 4x EZ Debug LED

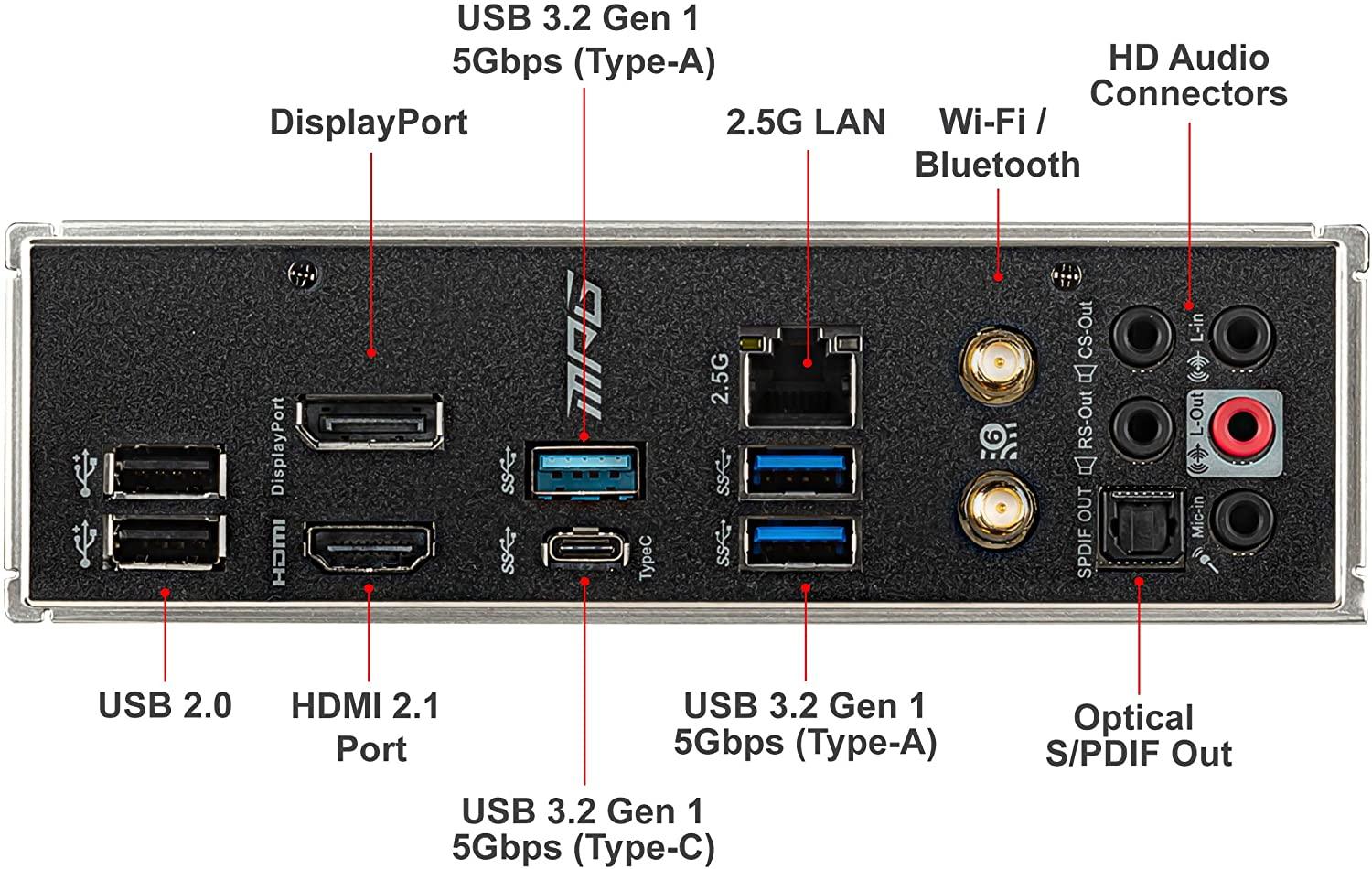

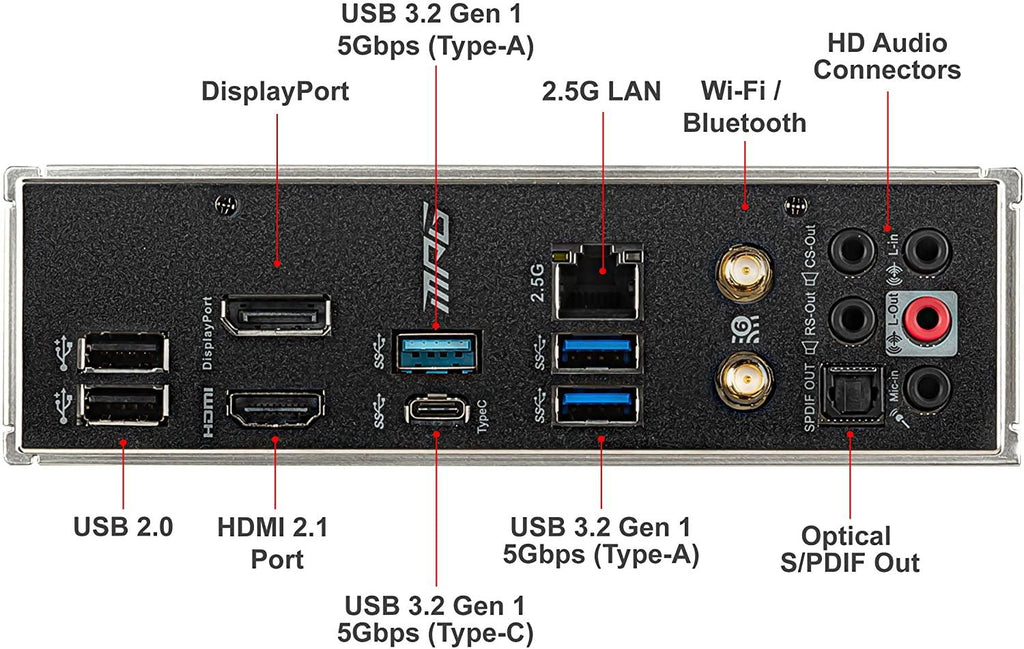

Back panel ports	DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT
I/O Controller	NUVOTON NCT6687 Controller Chip
Dimensions	Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Warranty	3 Years

MSI MPG B460I Gaming Edge WiFi Gaming Motherboard

Description

MSI MPG B460I Gaming Edge WiFi Gaming Motherboard (Mini-ITX, 10th Gen Intel Core, LGA 1200 Socket, DDR4, Dual M.2 Slots, USB 3.0, 2.5G LAN, WiFi 6, DP/HDMI)
