MSI ProSeries AMD A320 1st, 2nd, 3rd Gen ATX Motherboard

MSI
Price:
Rs. 4,500.00

Description

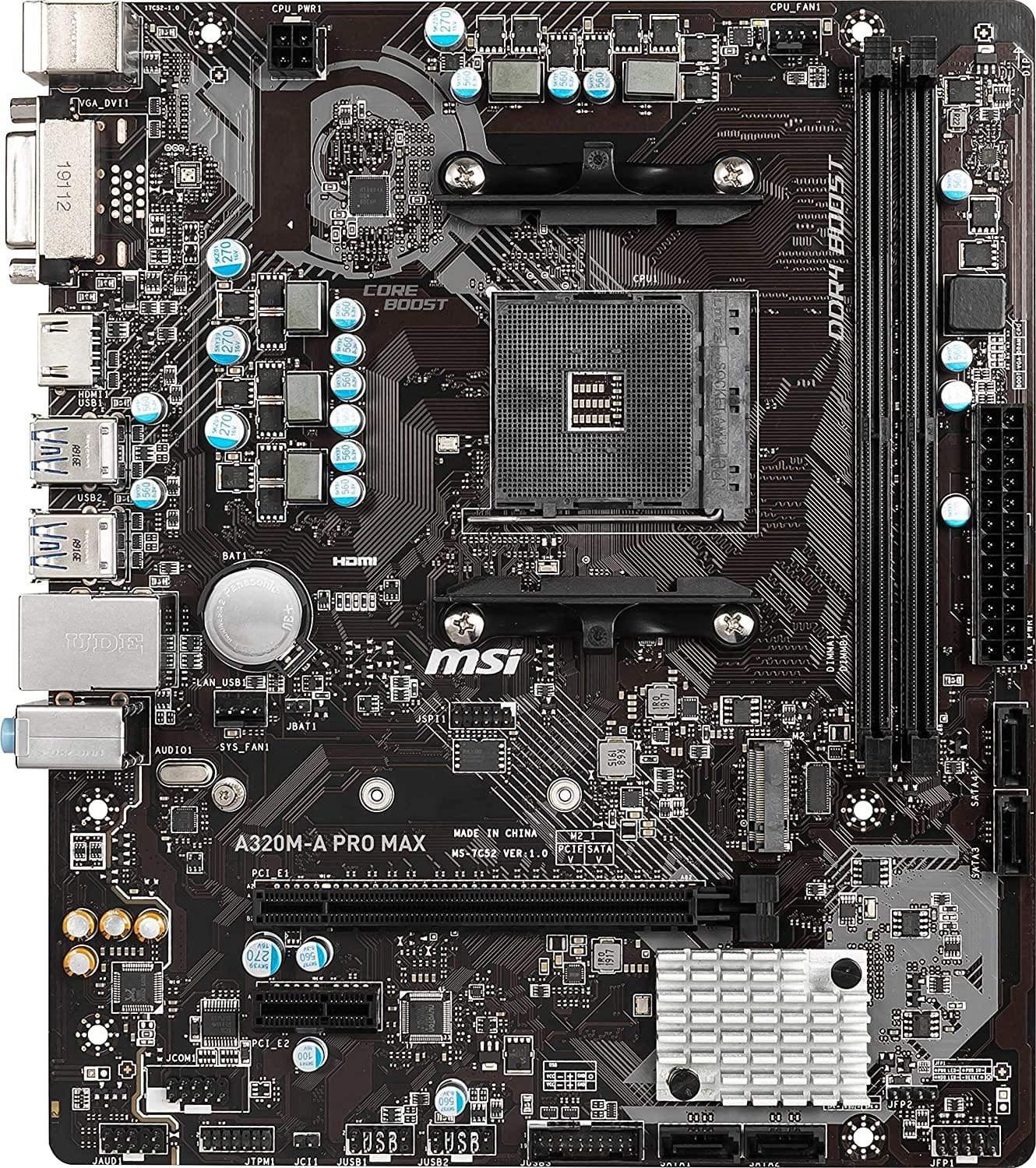

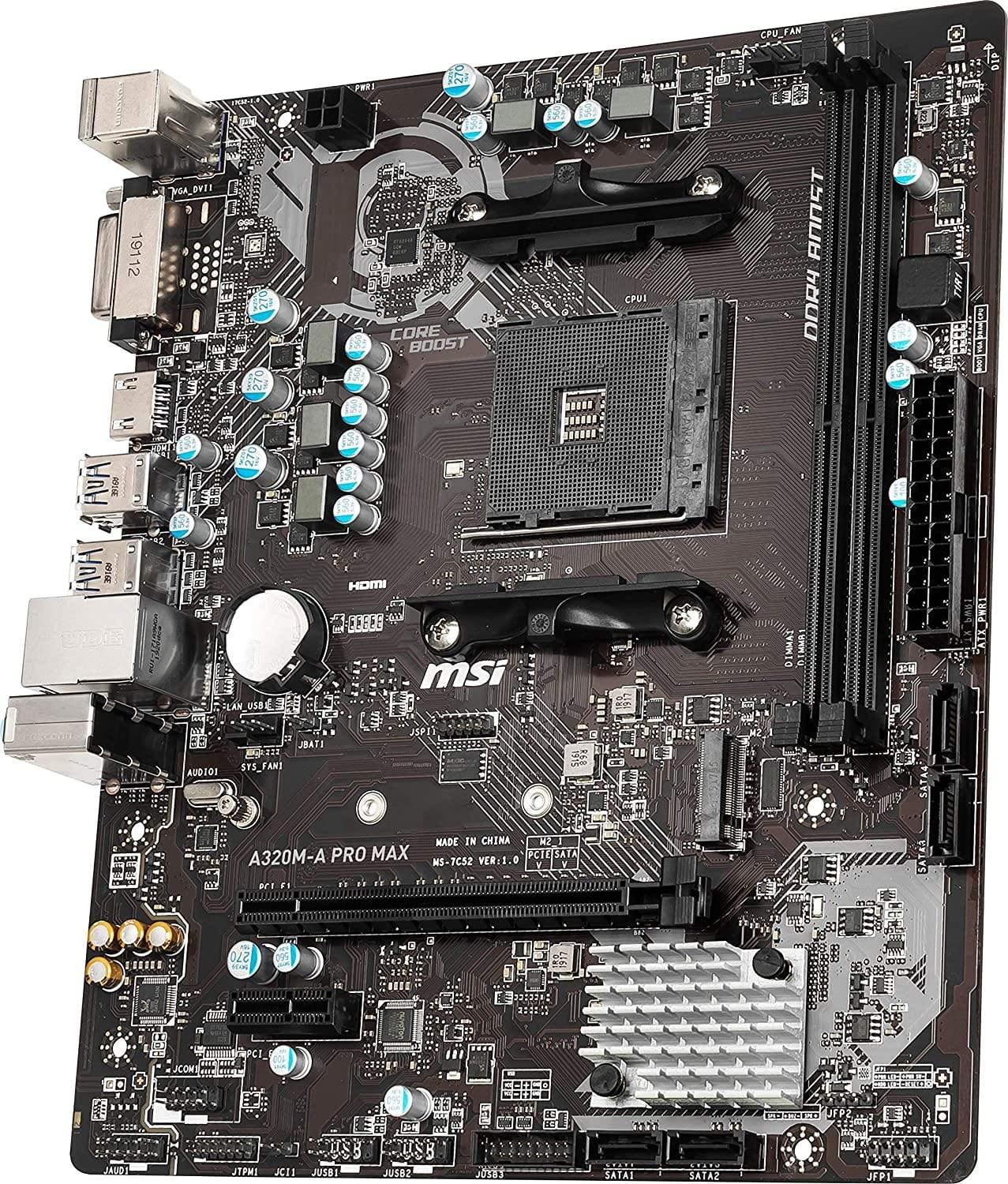

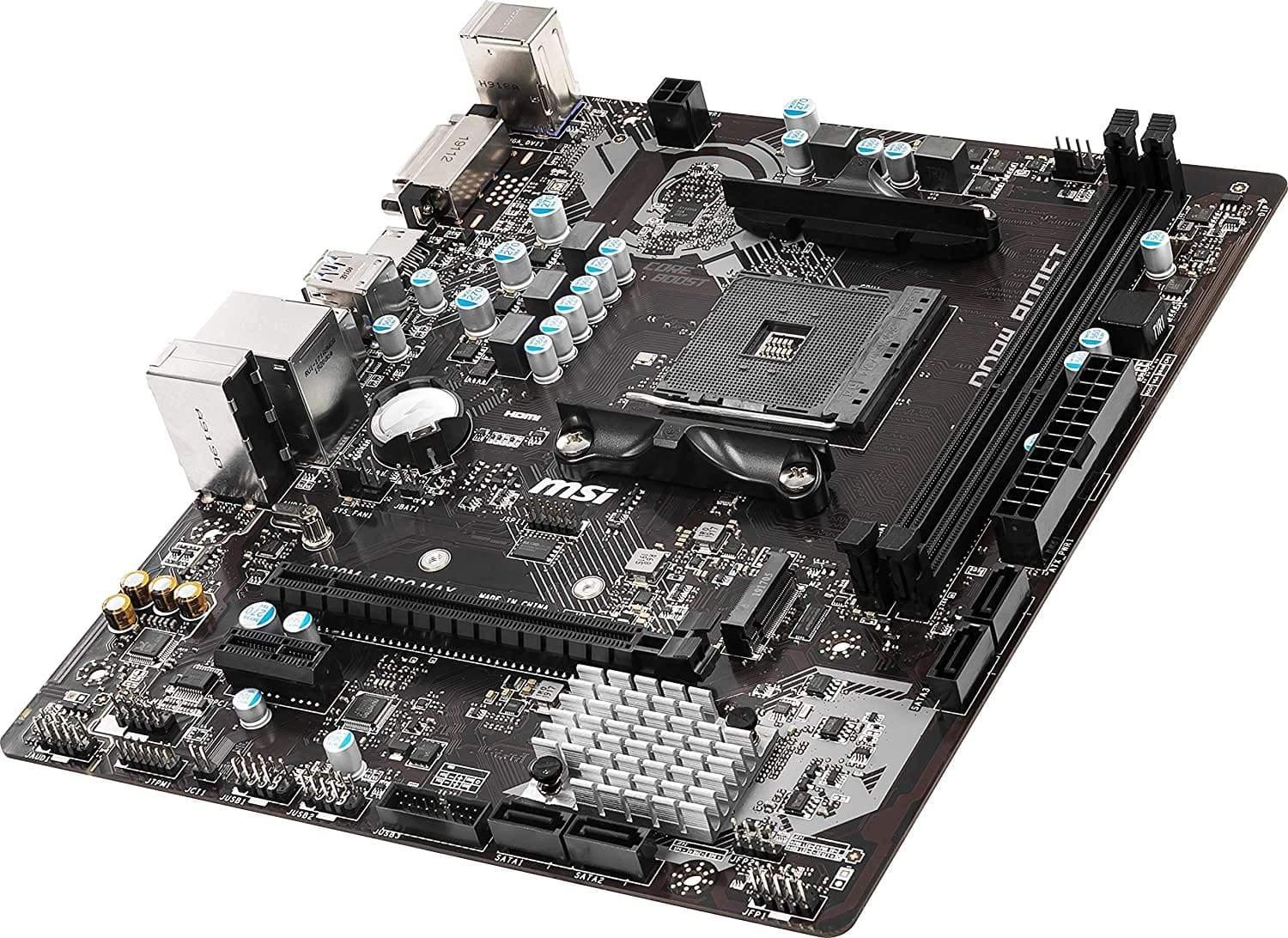

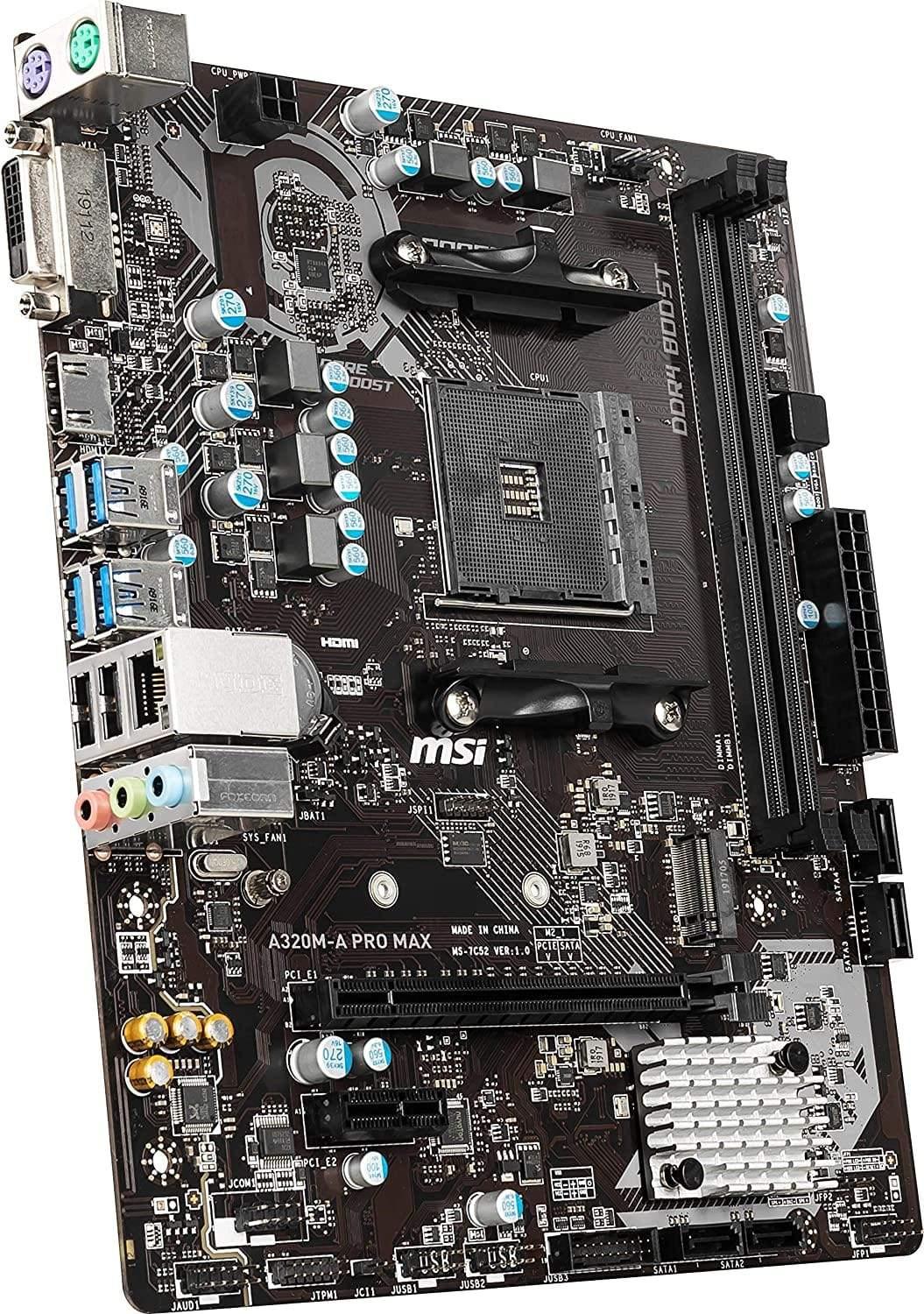

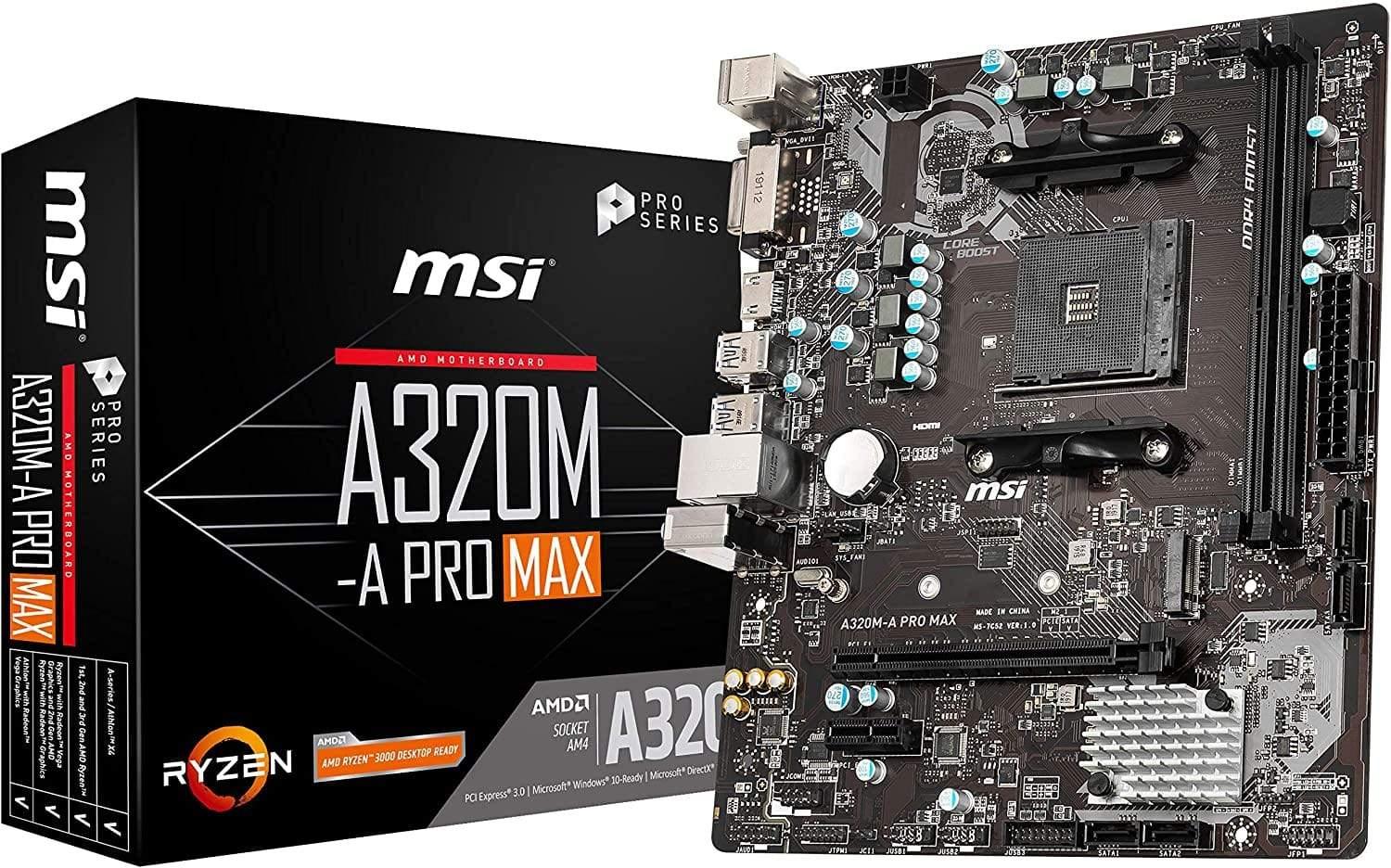

MSI ProSeries AMD A320 1st, 2nd, 3rd Gen Ryzen Compliant AM4 DDR4 HDMI DVI M.2 USB 3 Micro-ATX Motherboard (A320M-A PRO MAX)

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want.


This fits your .
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen/Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/Athlon with Radeon Vega Graphics and A-series/Athlon X4 Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3200 (OC) MHz
  • Turbo M. 2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device

Specifications

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipset

AMD® A320 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB

  • Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC)

  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)

  • Dual channel memory architecture

  • Supports ECC UDIMM memory (non-ECC mode)

  • Support non-ECC UDIMM memory

Slots
  • 1 x PCIe 3.0 x16 slot
    • Supports x16 speed
      • 1st, 2nd and 3rd Gen AMD Ryzen™
    • Supports x8 speed
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
      • A-series
      • Athlon™ X4
    • Supports x4 speed
      • AMD® Athlon™ with Radeon™ Vega Graphics
  • PCIe 2.0 x1 slot

Onboard Graphics
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
  1. Only support when using the processor with Graphicss
  2. Maximum shared memory of 2048 MB

Storage

AMD® A320 Chipset

  • 4 x SATA 6Gb/s ports
    • Supports RAID 0, RAID1 and RAID 10
  • 1x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 and SATA 6Gb/s
      • 1st, 2nd and 3rd Gen AMD Ryzen™
      • Ryzen™ with Radeon™ Vega Graphics
      • 2nd Gen AMD Ryzen™ with Radeon™ Graphics
    • Supports PCIe 3.0 x2 and SATA 6Gb/s
      • AMD® Athlon™ with Radeon™ Vega Graphics
      • A-series
      • Athlon™ X4
    • Supports 2242/2280/22110 storage devices



USB

AMD® A320 Chipset

  • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper

Back panel ports
  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors

Dimensions
  • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
  • m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit

Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty

 3 Years
