PROCESSOR |
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
CHIPSET |
AMD® X570 Chipset |
MEMORY |
- 4x DDR4 memory slots, support up to 128GB
- s3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
|
EXPANSION SLOTS |
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3x PCIe 3.0 x1 slots
- PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
- The speeds may vary for different devices
|
ONBOARD GRAPHICS |
- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Maximum shared memory of 2048 MB
|
MULTI-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
STORAGE |
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD® Processor)
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) - Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) - Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset)
- Supports PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices
|
RAID |
Supports RAID 0, RAID 1 and RAID 10 |
USB |
AMD® X570 Chipset
- 2x USB 3.2 Gen 2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
- 4x USB 3.2 Gen 1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
- 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|
AUDIO |
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
|
LAN |
1x ealtek® 8111H Gigabit LAN Controller |
WIFI & BLUETOOTH |
Intel® Dual Band Wireless-AC 3168
- Supports 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
- The Wireless module is pre-install in the M2_3 (Key-E) slot
|
INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Serial port connector
- 1x Clear CMOS jumper
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LEDs
|

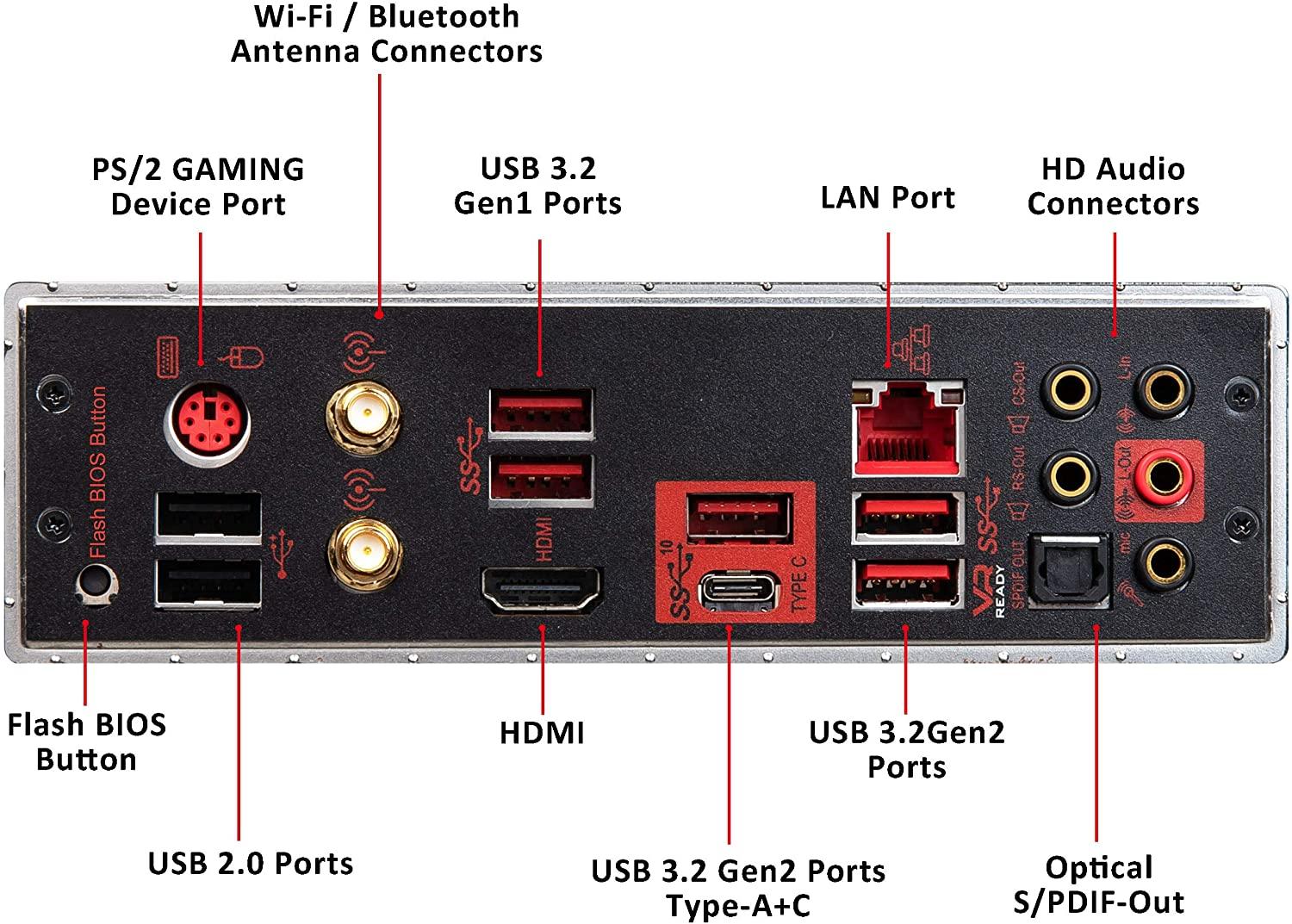

BACK PANEL PORTS |
- Keyboard / Mouse
- Wireless / Bluetooth
- USB 3.2 Gen1 Type-A
- LAN
- Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen2 Type-A + C
- USB 3.2 Gen2 Type-A
- Optical S/PDIF out
|
DIMENSIONS |
- 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
- ATX Form Factor
|
MOUNTING |
9 mounting holes |
OPERATING SYSTEM |
Support for Windows® 10 64-bit |
Warranty |
3 Years |
